NEFW

13" – 60" Tall - Wet listed Wall Mount

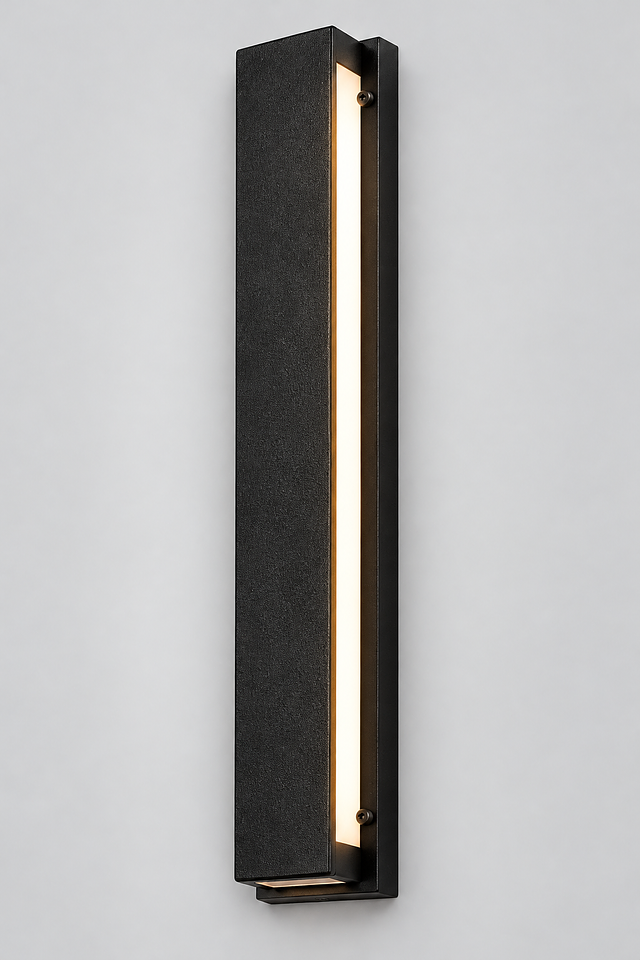

 The NEFW LED Series delivers a clean, ADA‑compliant linear architectural profile available in lengths from 13" to 60", making it suitable for both compact and large‑scale exterior or interior applications. Its steel housing and chassis provide structural rigidity, while the vandal‑resistant acrylic diffuser ensures impact durability and uniform illumination. The fixture mounts easily to a standard 2×4 junction box or 4" square post using the integral mounting plate and included hardware. Designers can specify an optional two‑color frame and cover, allowing for contrasting or blended finishes that elevate the fixture’s visual presence. Larger models (426 and above) support optional battery backup for emergency egress requirements. With CRI > 90, universal 120/277V operation, and UL/CUL Wet Location certification, the NEFW Series is engineered for long‑term reliability in commercial, municipal, and multi‑family environments. Proudly made in America, with BABA‑compliant options always available.
Specification Sheet

Resources

  • Steel housing and steel chassis
  • Vandal‑resistant acrylic diffuser
  • ADA‑compliant low‑profile linear design
  • Optional two‑color frame and cover combinations
  • Integral mounting plate; hardware included
  • Mounts to 2×4 j‑box or 4" square post
  • Available lengths: 13", 26", 38", 50", 60"
  • Mounting center dimensions: 6.5", 13", 19", 25", 30"

  • LED light source
  • Dimming to 10% included (0–10V or TRIAC/ELV depending on LED engine)
  • CRI > 90
  • Replaceable LED module
  • Universal 120/277V standard
  • Optional photocell (21) — specify voltage (01 = 120V, 02 = 277V)
  • Optional battery backup (BB10) — available on 426 and larger; 10W, 1170 lm, 90 minutes
  • UL and CUL Wet Location listed
  • 5‑year warranty on LED components
Features & Benefits
  • ADA‑compliant linear profile suitable for public corridors and accessible routes
  • Vandal‑resistant acrylic diffuser for high‑traffic or public‑access environments
  • Wet Location rated for indoor or outdoor use
  • Optional two‑color frame and cover for enhanced architectural styling
  • High‑efficiency LED system with CRI > 90
  • Optional battery backup for emergency egress (426 and larger)
  • Proudly made in America
  • BABA‑compliant options always available

Ideally Suited For
  • A strong choice for multi‑family exterior corridors and breezeways
  • Well‑matched to municipal buildings, public walkways, and transit facilities
  • A dependable option for schools and campus environments
  • Great for commercial exteriors requiring Wet Location durability
  • Perfect for ADA‑sensitive environments needing a vandal‑resistant, two‑tone linear wall fixture

Ratings & Compliance

  • ADA
  • ARRA
  • Build America Buy America (BABA)
  • Buy America
  • Buy American Act (BAA)
  • Made in America
  • RoHS
  • Title 24
  • Wet

Lumens

  • 1210
  • 2420
  • 3630
  • 4840
  • 6050

Emergency Options

  • Integral EM Battery

Dimming Protocol

  • 0-10 V
  • ELV
  • Phase Dimming
  • Triac

CRI

  • 91

Shape

  • Rectangular

Lamp Source

  • LED

Listings

  • UL
  • cUL

Materials

  • Acrylic
  • Aluminum
  • Steel

Watts

  • 9
  • 18
  • 27
  • 36
  • 45

Warranty

  • 5 yr
  • 10 yr

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

Static LED Color

  • White

Voltage

  • 110 V
  • 110-120 V
  • 110-277 V
  • 120 V
  • 120-277 V
  • 347 V
  • Dual Volt
  • MVOLT
  • Multi Volt
  • Multi-Volt
  • UNV

Color / Finish

  • Anodized Silver
  • Brass Powder
  • Brushed Aluminum
  • Brushed Nickel
  • Butterscotch
  • Cornflower Blue
  • Custom
  • Deep Red
  • Gloss White
  • Medium Grey
  • Parkers Blue
  • Pearl Beige
  • Pewter
  • Sage
  • Sand Fossil
  • Satin Black
  • Satin Bronze
  • Shimmer Gray
  • Silver Gray
  • Textured Black
  • Textured Bronze
  • Textured Silver
  • Textured White
  • Tuscan Sun
  • Yolk White
