NEBWNEBW
13" – 60" Tall - Wet listed Wall Mount

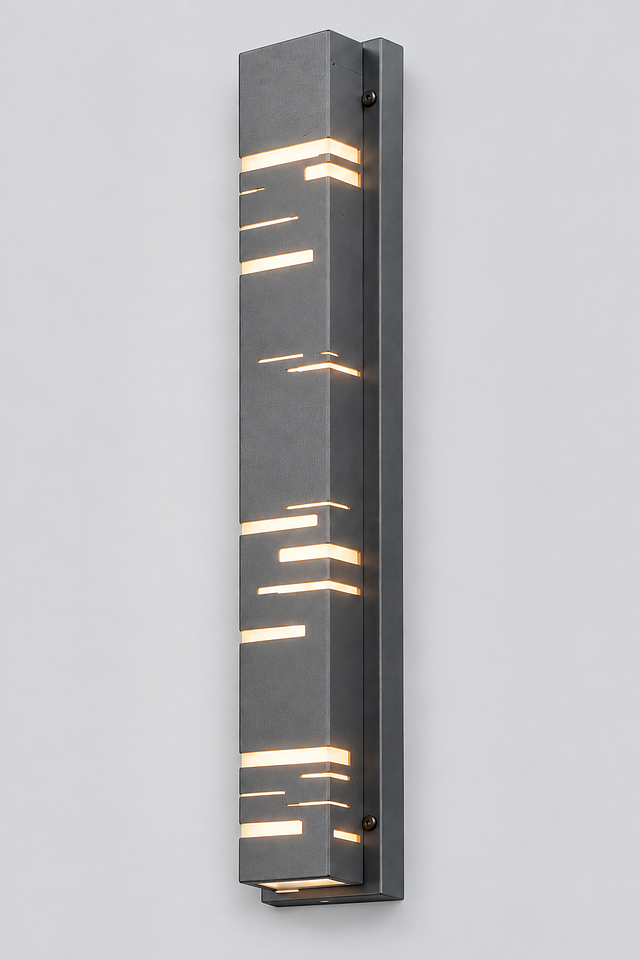

The NEBW LED Series delivers a sleek, ADA‑compliant linear architectural form with lengths ranging from 13" to 60", making it suitable for both compact and large‑scale exterior or interior applications. Its steel housing and chassis provide structural rigidity, while the vandal‑resistant acrylic diffuser ensures impact durability and uniform illumination. The fixture mounts easily to a standard 2×4 junction box or 4" square post, with integral hardware included for simplified installation. Larger models (426 and above) support optional battery backup for emergency egress requirements. With CRI > 90, universal 120/277V operation, and UL/CUL Wet Location certification, the NEBW Series is engineered for long‑term reliability in commercial, municipal, and multi‑family environments. Proudly made in America, with BABA‑compliant options always available.
Resources
- Steel housing and steel chassis
- Vandal‑resistant acrylic diffuser
- ADA‑compliant low‑profile linear design
- Integral mounting plate; hardware included
- Mounts to 2×4 j‑box or 4" square post
- Available lengths:
- NEBW‑413 — 13"
- NEBW‑426 — 26"
- NEBW‑438 — 38"
- NEBW‑450 — 50"
- NEBW‑460 — 60"
- Mounting center dimensions: 6.5", 13", 19", 25", 30"
LED light source
Dimming to 10% included (0–10V or TRIAC/ELV depending on LED engine)
CRI > 90
Replaceable LED module
Universal 120/277V standard
Optional battery backup (BB10) — available on 426 and larger; 10W, 1170 lm, 90 minutes
UL and CUL Wet Location listed
5‑year warranty on LED components
Dimming to 10% included (0–10V or TRIAC/ELV depending on LED engine)
CRI > 90
Replaceable LED module
Universal 120/277V standard
Optional battery backup (BB10) — available on 426 and larger; 10W, 1170 lm, 90 minutes
UL and CUL Wet Location listed
5‑year warranty on LED components
Features & Benefits
Vandal‑resistant acrylic diffuser for high‑traffic or public‑access environments
Wet Location rated for indoor or outdoor use
ADA‑compliant linear profile suitable for public corridors and accessible routes Linear form factor ideal for long architectural runs
High‑efficiency LED system with CRI > 90
Optional battery backup for emergency egress (426 and larger)
Proudly made in America
BABA‑compliant options always available
Vandal‑resistant acrylic diffuser for high‑traffic or public‑access environments
Wet Location rated for indoor or outdoor use
ADA‑compliant linear profile suitable for public corridors and accessible routes Linear form factor ideal for long architectural runs
High‑efficiency LED system with CRI > 90
Optional battery backup for emergency egress (426 and larger)
Proudly made in America
BABA‑compliant options always available
Ideally Suited For
A strong choice for multi‑family exterior corridors and breezeways
Well‑matched to municipal buildings, public walkways, and transit facilities
A dependable option for schools and campus environments
Great for commercial exteriors requiring long, uniform illumination
Useful anywhere needing a vandal‑resistant, Wet Location linear wall fixture
A strong choice for multi‑family exterior corridors and breezeways
Well‑matched to municipal buildings, public walkways, and transit facilities
A dependable option for schools and campus environments
Great for commercial exteriors requiring long, uniform illumination
Useful anywhere needing a vandal‑resistant, Wet Location linear wall fixture
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Made in America
- RoHS
- Title 24
- Wet
Lumens
- 1210
- 2420
- 3630
- 4840
- 6050
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 91
Shape
- Rectangular
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 9
- 18
- 27
- 36
- 45
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
