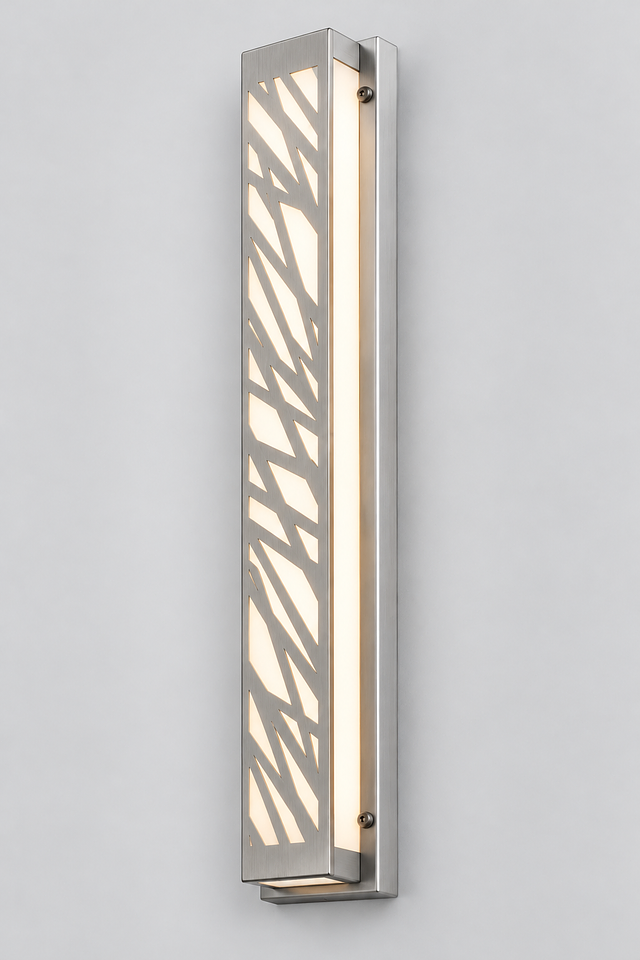

NEZW
13" – 60" Tall - Wet listed Wall Mount
The NEZW LED series is an ADA‑compliant linear wall fixture engineered for architectural, commercial, and security applications requiring a low‑profile, durable, and visually clean design. Constructed with a steel housing and chassis and a vandal‑resistant acrylic diffuser, the NEZW provides dependable illumination with CRI > 90, universal 120/277V operation, and 0–10V dimming to 10% included. The fixture mounts easily to a 2×4 j‑box or 4" square post and offers optional two‑tone frame and cover finishes for enhanced design flexibility. Models 426 and larger support optional battery backup for emergency egress needs. Wet‑location listing and replaceable LED modules ensure long‑term serviceability. Proudly made in America with BABA‑compliant options always available.
Resources
- Steel housing and chassis
- Vandal‑resistant acrylic diffuser
- ADA‑compliant low‑profile design
- Integral mounting plate; hardware included
- Mounts to a 2×4 j‑box or 4" square post
- Optional two‑color frame and cover
- Available fixture lengths:
- NEZW‑413 — 13"
- NEZW‑426 — 26"
- NEZW‑438 — 38"
- NEZW‑450 — 50"
- NEZW‑460 — 60"
LED light source
0–10V dimming to 10% included
Universal 120/277V input
CRI > 90
Color temperatures: 3000K, 3500K, 4000K
Replaceable LED module
UL and CUL listed for wet locations
Battery backup available on 426 and larger
0–10V dimming to 10% included
Universal 120/277V input
CRI > 90
Color temperatures: 3000K, 3500K, 4000K
Replaceable LED module
UL and CUL listed for wet locations
Battery backup available on 426 and larger
- Color temperatures: 3000K, 3500K, 4000K
- High‑efficiency LED components with long service life
- 5‑year warranty on LED components
Options & Customization
- Matching front decorative finish options
- All‑aluminum construction option
Benefits
- ADA‑compliant low‑profile design ideal for corridors and public spaces
- Vandal‑resistant construction for high‑traffic environments
- Wet‑location rated for exterior or harsh‑environment use
- Replaceable LED module reduces long‑term maintenance
- Optional battery backup supports egress and safety compliance
- Proudly made in America with BABA‑compliant options always available
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Made in America
- RoHS
- Title 24
- Wet
Emergency Options
- Integral EM Battery
Dimming Protocol
- 1-10 V
- ELV
- Phase Dimming
- Triac
Shape
- Rectangular
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
