CSXCCSXC
11" Damp Listed Ceiling or Wall Mount Lighting

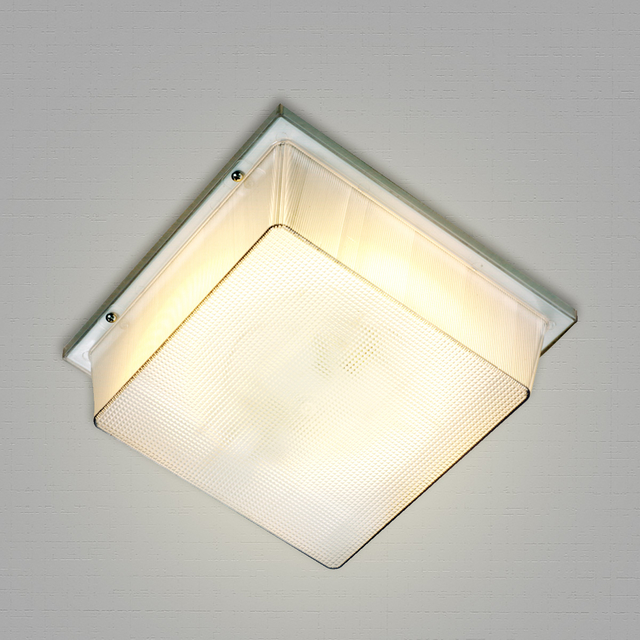

The CSXC-LED is a square flush-mount ceiling fixture built on a steel pan with a clear prismatic polycarbonate diffuser for bright, wide-distribution illumination. An optional white smooth polycarbonate diffuser is also available. Available in an 11" size, it installs via keyhole slots to a standard J-Box. An optional aluminum pan is available for enhanced construction.
CRI >90 standard with 0–10V and TRIAC/ELV dimming options. Energy Star listed on qualifying configurations. A 90 CRI option is available, consult factory.
UL and CUL listed for DAMP locations, Energy Star listed on qualifying configurations, and backed by a 5-year LED component warranty.
Resources
Material: Steel pan
Lens Material: Clear prismatic polycarbonate standard; optional white smooth polycarbonate
Mounting: Keyhole slots for standard J-Box installation
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions:
CSXC-11: 4" H × 10⅝" W × 10⅝" D
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 80 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
Energy Star: Listed on qualifying configurations
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The CSXC-LED square flush-mount delivers broad, efficient LED illumination through its clear prismatic polycarbonate lens — ideal for utility, commercial, and institutional environments where wide light distribution is a priority. Made in America.
Ideally Suited For
• Utility and mechanical room overhead lighting
• Commercial corridor and stairwell flush-mount lighting
• Educational institution restroom and support area lighting
• Healthcare facility service and utility area lighting
• Retail back-of-house and storage area lighting
Key Features & Options
• Energy Star listed on qualifying configurations
• Clear prismatic polycarbonate lens — wide light distribution
• Optional white smooth polycarbonate diffuser
• Optional aluminum pan construction
• 90 CRI option available — consult factory
• 0–10V and TRIAC/ELV dimming options
• Proudly made in America — BABA compliant options always available
• 5-year LED warranty; optional 10-year warranty available
Ratings & Compliance
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- Made in America
- RoHS
- Title 24
Lumens
- 863
- 1361
- 1400
- 2115
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 81
- 91
Shape
- Square
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Polycarbonate
- Steel
Watts
- 9
- 10
- 13
- 15
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
