ABUC

14" Damp Listed Ceiling or Wall Mount

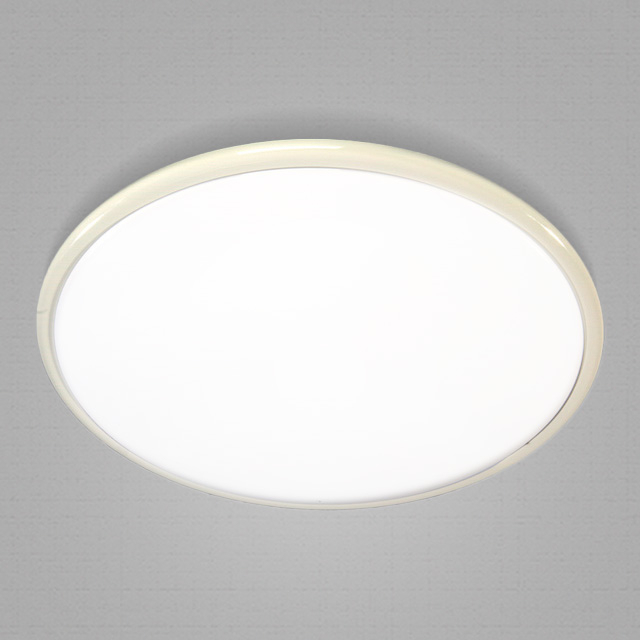

The ABUC-LED is a sleek, fastenerless-appearance flush-mount luminaire constructed with a steel pan and steel spun trim ring. The white smooth acrylic diffuser provides clean, uniform light distribution ideal for covered entryways, corridors, and utility spaces. Available with a cast uplight accent for added architectural interest.

LED performance is optimized with a CRI greater than 80, 3-step MacAdam color binning for consistency across projects, and lumen maintenance exceeding 60,000 hours. The replaceable LED engine ensures long-term serviceability. Dimming is included standard to 10%; 0–10V and TRIAC/ELV options are available. The fixture operates on universal 120–277V and optionally to 347V.

The ABUC-LED is Energy Star listed and UL/CUL listed for DAMP locations. Available with optional integrated occupancy sensors and battery backup (BB10 — 10W/1,170lm for 90 minutes, 0–10V only). Backed by a 5-year warranty on LED components with an optional 10-year warranty.

Specification Sheet

Resources Similar Products

Resources

Material: Steel pan; steel spun trim ring

Lens Material: White smooth acrylic (WSA)

Mounting: Wall or ceiling mount — keyhole slots for standard J-box

Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.

Proudly made in America — BABA compliant options always available.

Dimensions: ABUC-14-LED: 5 5/8" H × 14" Diameter

Replaceable LED Module: Yes — field replaceable

3-Step MacAdam Binning: Standard

Lumens: Source lumens — see configuration table

Lumen Maintenance: > 60,000 hours

Integral Driver: Standard

Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.

Voltage: 120–277V universal standard

CRI: > 90 Standard

CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K

Energy Star: Yes — qualifying configurations

UL / CUL Listing: UL and CUL Listed — DAMP location

Warranty: 5-year warranty on LED components with optional 10-year warranty available

The ABUC-LED is a versatile flush-mount LED luminaire combining a fastenerless aesthetic with robust steel construction and a white smooth acrylic diffuser. Its Energy Star listing and optional sensors make it an outstanding choice for energy-conscious projects.

Ideally Suited For:
• Covered entryways and vestibules

• Hotel and hospitality corridors

• Residential hallways and stairwells

• Light commercial utility areas

• Parking structure pedestrian zones

Key Features & Options:

• Energy Star listed — qualifying configurations

• Replaceable LED module for long-term serviceability

• Cast uplight accent for architectural detail

• 0–10V dimming included; TRIAC/ELV available

• Optional integrated occupancy sensors (OCCHFA)

• Battery backup option — BB10 (10W / 1,170lm / 90 min, 0–10V only)

• Optional 347V input voltage

• 24 finish options; custom finishes available

• Proudly made in America — BABA compliant options always available.

• 5-year warranty with optional 10-year upgrade
